Overview

This project focuses on colorizing historical black and white images by aligning three separate color channels (red, green, and blue) that were captured using different filters. The main challenge is that these channels are often misaligned due to camera movement between exposures, requiring precise alignment algorithms to reconstruct the original color image. I implemented a multi-scale pyramid alignment algorithm using normalized cross-correlation (NCC) as the similarity metric.

Approach

The approach works by:

Image Preprocessing: Crop border (10% from each edge) to eliminate artifacts that could interfere with alignment
Multi-scale Alignment: Build image pyramids to handle large displacements efficiently
Normalized Cross-Correlation: Use NCC to find optimal alignment offsets between color channels
Edge-based Alignment: Sobel edge detection followed by NCC on the edge maps to solve Emir case

Part 1: Start with the simple example

To start the project, I start with the simple smaller example monastry.jpg and cathedral.jpg. After cropping the image into three separate parts (b, g, r), each part has a size of around (341, 390). While we are suggested to use alignment to align three different channels, naively calculating the result will lead to this:

Cathedral - Naive Result

Green shift: (1, -1), Red shift: (7, -1)

Time taken: 1.13 seconds

Monastery - Naive Result

Green shift: (-6, 0), Red shift: (9, 1)

Time taken: 1.15 seconds

We can see that the naive implementation is not good enough, the actual building is not aligned. Why is this happening? In the alignment process, I am using normalized cross-correlation to align the image. The normalized cross-correlation is a measure of the similarity between two images. The higher the normalized cross-correlation, the more similar the two images are. To find out the reason, I print out all the channels and we can see that there are borders along the edges of the image, and these borders contribute to the high normalized cross-correlation score.

Monastery Blue Channel

Monastery Green Channel

Monastery Red Channel

Therefore, I choose to crop the image borders (each by 10% of the width and height) to get the following result:

Cathedral - Result

Green shift: (5, 2), Red shift: (12, 3)

Time taken: 0.82 seconds

Monastery - Result

Green shift: (-3, 2), Red shift: (3, 2)

Time taken: 0.91 seconds

Part 2: Play with Image Pyramid

To cope with larger files, I implement the image pyramid to downsample the image. This is because the simple way of aligning the image is ofcomplexity for the search range. For a larger image, the search range will be larger, and the compute time will be intolerable.

By downsampling the image, we can first conduct a coarse alignment on the smaller image, upsample the image to the original size, and then conduct a finer alignment with smaller search range. This way, we can avoid the expensive computation of the large image.

Image	Shape	Regular Time (s)	Pyramid Time (s)	Speedup	Green Shift (Reg → Pyr)	Red Shift (Reg → Pyr)
emir.tif	2570×2963	126.24	14.13	8.94×	(15, 15) → (49, 24)	(15, -4) → (26, -829)
italil.tif	2586×2978	133.96	10.31	12.99×	(15, 15) → (38, 21)	(15, 15) → (76, 35)
church.tif	2563×2909	131.11	21.51	6.09×	(15, 4) → (25, 4)	(15, -13) → (58, -4)
three_generations.tif	2570×2973	114.83	8.26	13.90×	(15, 12) → (53, 14)	(15, 8) → (112, 11)
lugano.tif	2597×3026	110.24	9.02	12.23×	(15, -15) → (41, -16)	(15, -15) → (92, -29)
melons.tif	2594×3017	103.43	7.81	13.25×	(15, 3) → (81, 10)	(15, 10) → (178, 13)
lastochikino.tif	2594×2961	99.84	7.50	13.30×	(-2, -2) → (-2, -2)	(15, 0) → (75, -8)
icon.tif	2597×2994	96.98	7.65	12.68×	(15, 15) → (41, 17)	(0, 15) → (89, 23)
siren.tif	2601×3056	121.68	9.88	12.32×	(15, -7) → (49, -6)	(15, -15) → (95, -25)
self_portrait.tif	2602×3049	127.43	10.11	12.60×	(15, 15) → (78, 29)	(15, 15) → (176, 37)
harvesters.tif	2577×2948	118.20	10.04	11.77×	(15, 15) → (59, 16)	(15, 6) → (124, 13)

We can see that if we use the naive implementation, most of the images will reach the shifting bound. However, with the image pyramid, the pictures are allowed to align with each other from a larger search range, thus leading to a much better result. The results from pyramid are here:

Emir - Pyramid Result

Italil - Pyramid Result

Church - Pyramid Result

Three Generations - Pyramid Result

Lugano - Pyramid Result

Melons - Pyramid Result

Lastochikino - Pyramid Result

Icon - Pyramid Result

Siren - Pyramid Result

Self Portrait - Pyramid Result

Harvesters - Pyramid Result

It is really interesting though that one of the images produced by the pyramid has relatively large shift error, which is the emir.tif. As mentioned in the project description:

Note that in the case like the Emir of Bukhara (show on right), the images to be matched do not actually have the same brightness values (they > are different color channels), so you might have to use a cleverer metric, or different features than the raw pixels.

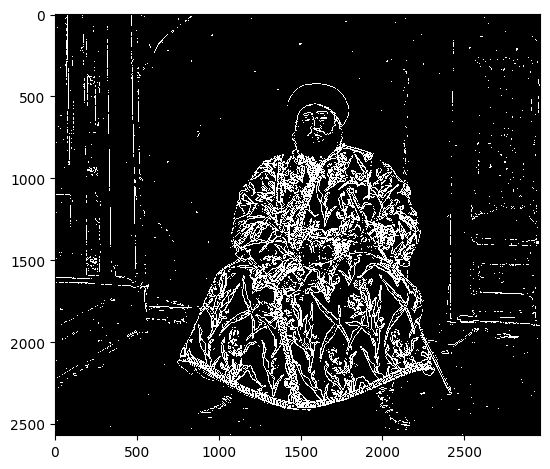

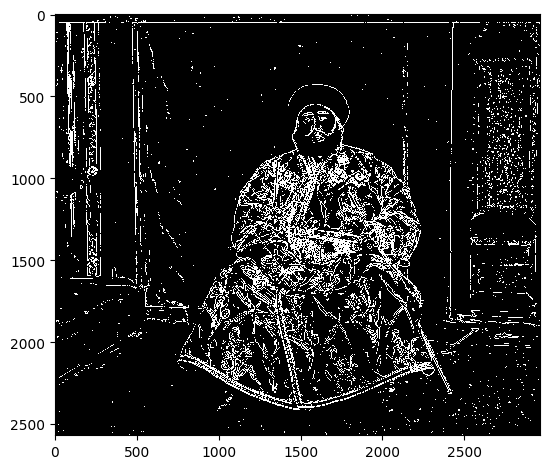

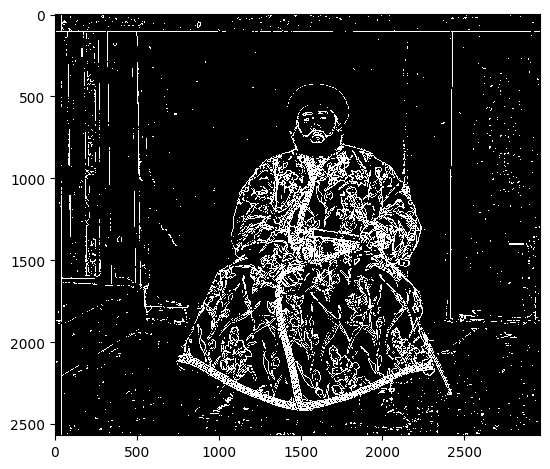

Therefore, I separately implement a different metric to align the image. I use the sobel kernel to extract the edges of the image, and then use the normalized cross-correlation to align the image. Here you can see the edges are much more aligned.
